The Remarkable World of Nanotechnology: From Atoms to Applications

In a world focused on bigger and faster things, nanotechnology is distinguished by proving that the smallest things can make the greatest impact. This fascinating field manipulates matter at an almost unimaginably small scale, creating behavior that often surprises and opens new doors. Let’s dive into the nano-world of scientific futures built one atom at a time.

Origins

The roots of nanotechnology stretch back further than you might think. Physicist Richard Feynman gave his now-famous speech “There’s Plenty of Room at the Bottom” in December 1959, in which he challenged scientists to manipulate individual atoms. Feynman never called it nanotechnology, but he did lay out essentially the entire vision for the field.

Tracing the origin of the term will eventually lead us to 197,4 when Japanese scientist Norio Taniguchi used the designation “nanotechnology” to refer to semiconductor processes that operate at the nanometer scale.But the real catalyst came in the 1980s when IBM researchers developed the scanning tunneling microscope a tool that finally allowed us to not just see but move individual atoms.

"The principles of physics, as far as I can see, do not speak against the possibility of maneuvering things atom by atom." – Richard Feynman

Their breakthrough moment came in 1989 when they positioned 35 xenon atoms to spell “IBM”—a seemingly simple demonstration that represented a profound technological achievement and marked the beginning of practical molecular nanotechnology.

Fundamental Concepts

Larger to Smaller: A Materials Perspective

When materials shrink to the nanoscale (1-100 nanometers), something magical happens. They don’t just get smaller they fundamentally transform. Gold turns red, aluminum becomes explosive, and typically inert materials suddenly become powerful catalysts.

These dramatic changes occur because surface science becomes dominant at the nanoscale. As particles shrink, their surface area relative to volume explodes. A single gram of 10nm particles has roughly the surface area of a tennis court. This surface dominance triggers quantum effects that completely rewrite the rules of physics and chemistry.

To grasp just how small we’re talking:

A human hair is about 80,000-100,000 nanometers wide
A red blood cell is approximately 7,000 nanometers in diameter
A DNA molecule is about 2.5 nanometers in diameter
A single atom is roughly 0.1-0.5 nanometers across

Semiconductor physics operates in this realm, where quantum effects begin to dominate and traditional electronic behaviors transform.

Simple to Complex: A Molecular Perspective

Nature builds complex structures from simple molecular building blocks a principle that molecular engineering has adopted. DNA, nature’s information storage system, creates incredibly sophisticated biological machines by following relatively simple assembly rules.

This perspective revolutionizes manufacturing. Traditional methods carve awayunwanted material, just as a sculptor will simply chip away the unnecessary material from a block of marble. Molecular nanotechnology, on the other hand, allows us to mimic nature and build precisely what we need, atom by atom, through molecular self-assembly processes.

Molecular Nanotechnology: A Long-term View

The ultimate vision, first introduced by K. Eric Drexler in “Engines of Creation” (1986) – is the thought of programmable nanoscale machines that could produce anything by positioning atoms in precisely their right place. These theoretical “assemblers” represent the pinnacle of molecular nanotechnology, allowing for:

Materials with “impossible” properties
Medical devices that repair individual cells
Environmental systems that clean up pollution at the molecular level

Although we still have decades ahead of us to realize this vision, the conceptual framework drives innovation across the entire spectrum of human endeavor from organic chemistry to device physics.

Research

Current nanotechnology research encompasses dozens of disciplines across physics, chemistry, biology, and engineering. Let us take a look at some of the major research paths:

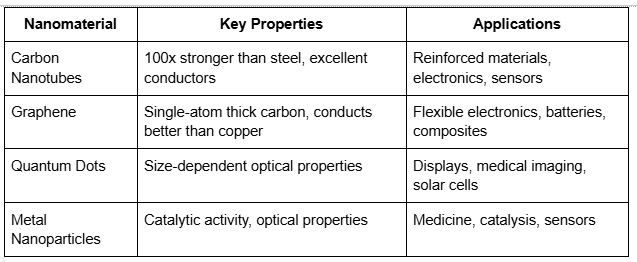

Nanomaterials

The field of molecular engineering continues to develop new nanomaterials with precisely tuned properties for specific applications.

Bottom-up Approaches

Bottom-up processes assemble larger constructs from smaller parts, often abstractions of nature’s molecular self-assembly. An example of a bottom-up process is DNA origami, which builds on DNA’s natural binding attributes to guys strands of DNA into predetermined shapes to make structural scaffolds or functional devices.

Organic chemistry plays a crucial role here, as researchers design molecules that can self-organize into desired structures through controlled chemical interactions.

Top-down Approaches

Traditional manufacturing miniaturized to the extreme, top-down approaches carve desired structures from larger materials. Advanced photolithography the process behind computer chip manufacturing can now create features under 10 nanometers wide, pushing the boundaries of semiconductor physics and device physics.

Top-down approaches are not as delicate as the bottom-up strategies, but they drive the semiconductor industry and are important for commercial applications within electronics.

Functional Approaches

Functional approaches prioritize what the nanomaterials can accomplish rather than how nanomaterials are made. This practical approach has had practical application with regard to:

Electronics: Smaller, faster components using principles of device physics
Medicine: Targeted drug delivery systems in nanomedicine applications
Energy storage: Better batteries and supercapacitors
Materials: Stronger, lighter, more durable products

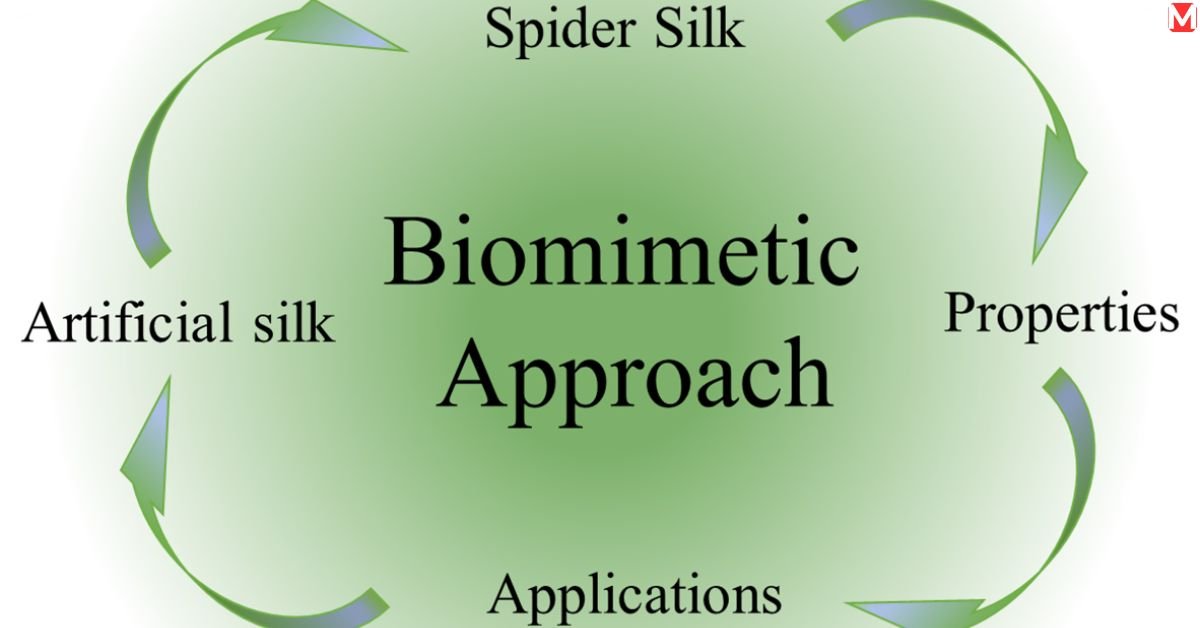

Biomimetic Approaches

Over billions of years of evolution, nature has solved countless engineering problems at the nanoscale. Biomimetic approaches turn to natural systems for inspiration by bridging molecular biology and material science.

The Lotus Effect: Lotus leaves’ water-repellent surfaces have inspired self-cleaning windows and paints
Gecko Adhesion: The incredible stickiness of gecko feet has led to new adhesives
Photosynthesis: Natural light-harvesting provides models for artificial energy systems

Dimensionality in Nanomaterials

Nanomaterials are classified by how many dimensions exist at the nanoscale:

0D (all dimensions nano): Quantum dots, fullerenes
1D (two dimensions nano): Nanowires, nanotubes
2D (one dimension nano): Graphene, other thin films
3D (complex nano structures): Nanofoams, 3D printed nanomaterials

Each dimensional class relies on principles from surface science and offers unique properties for different applications.

Tools and Techniques

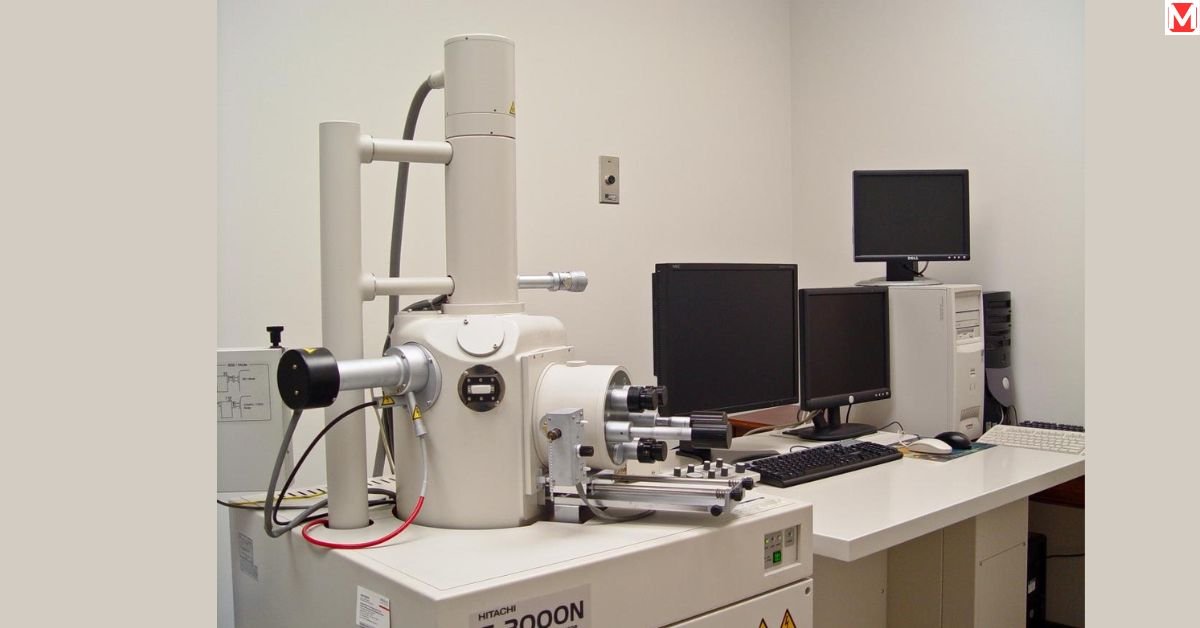

Scanning Microscopes

You can’t build what you can’t see. Scanning probe microscopes revolutionized nanotechnology by allowing visualization and manipulation of individual atoms:

Scanning Tunneling Microscope (STM): Uses quantum tunneling to image surfaces at atomic resolution
Atomic Force Microscope (AFM): Maps surfaces by measuring forces between a sharp probe and sample
Transmission Electron Microscope (TEM): Passes electrons through ultra-thin samples for internal imaging

These tools have transformed surface science and enabled unprecedented advances in materials characterization.

Lithography

Lithographic techniques, repurposed from semiconductor manufacturing, pattern materials at smaller and smaller scales, required for semiconductor physics and device physics:

Photolithography: Uses light to transfer patterns
E-beam lithography: Employs focused electron beams for higher precision
Nanoimprint lithography: Physically stamps patterns for cost-effective replication

Bottom-up

Chemistry-based approaches offer precise control over material structure through molecular self-assembly and organic chemistry:

Chemical vapor deposition: Grows thin films atom by atom
Sol-gel processing: Creates materials through chemical precursors in solution
Self-assembly: Exploits molecules’ natural tendency to organize

Applications

Nanotechnology has moved from laboratories into our daily lives, spanning multiple industries:

Case Study: Nanomedicine Revolution

The arena of nanomedicine applications has witnessed especially monumental changes. Take for example CytImmune’s AurImune, gold nanoparticles coated with tumor necrosis factor, which are specifically targeted to cancer cells. By delivering the drugs specifically to the tumors, healthy tissue is spared from the effects of the drug. Gold nanoparticles sufficiently reduce the risk of off-target effects, providing a new kind of option for cancers.

These approaches demonstrate how molecular biology and nanotechnology converge to create targeted therapies that were impossible with conventional methods.

Other Breakthrough Applications

Electronics: Higher density memory using principles of semiconductor physics
Energy storage: Nanostructured electrodes for better batteries
Materials: Carbon nanotube-reinforced composites with unprecedented strength
Environment: Nanostructured filters for water purification addressing environmental concerns
Consumer products: Enhanced textiles, cosmetics, and sporting goods

Implications

Health and Environmental Concerns

The unique properties that make nanomaterials so useful also create new safety questions. Their small size allows them to penetrate barriers that block larger particles, raising legitimate environmental concerns about:

Unknown persistence in ecosystems
Potential bioaccumulation in food chains
Interactions with existing pollutants
Challenges in detection and filtration

Research into “green nanotechnology” aims to develop sustainable, safer nanomaterials and processes that address these environmental concerns proactively.

Regulation

The regulatory landscape for nanotechnology remains fragmented. Existing frameworks weren’t designed for materials whose properties change dramatically with size. Organizations like the FDA, EPA, and their international counterparts are developing nano-specific guidelines, though they often struggle to keep pace with rapid technological advances.

Consumer products containing nanomaterials already exist in the marketplace, sometimes with limited disclosure or inconsistent labeling, highlighting the need for comprehensive regulation.

The Future of Nanotechnology

While early nanotechnology hype promised dramatic overnight changes, the reality has been more measured—steady progress across multiple fronts rather than a single revolution. The next decade will likely see:

Integration of multiple nanomaterials into complex systems
Increased commercialization of nano-enabled consumer products
Greater focus on sustainability and lifecycle analysis
More sophisticated bio-nano interfaces combining molecular biology with device physics
Convergence with artificial intelligence for “smart” nanomaterials

Molecular nanotechnology continues to balance ambitious long-term visions with practical near-term applications. The field represents a perfect example of how fundamental science drives commercial opportunity, creating solutions for energy, medicine, electronics, and environmental challenges.

What started with moving individual atoms now touches everything from medicine to electronics to environmental protection proving that in the realm of nanotechnology, the biggest changes often come from the smallest things.
